BR1500 : Triple negative breast cancer (TNBC )and control tissue array, including pathology grade, neoadjuvant chemotherapy (NAC)/Miller/Payne Grading System (MP grades),IHC result ER/PR/HER2/Ki67,TNM/clinical stage (AJCC 8th edition), 75 cases/150 cores (core size 1.0mm)
Description

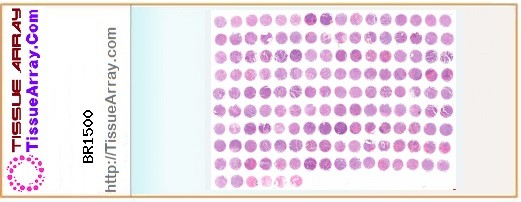

| Microarray Panel |
Triple negative breast carcinoma and control tissue microarray, containing 70 cases TNBC, 1 each cases of ER, PR,and HER2 positive controls, along with 1 case of normal breast control tissue, duplicate cores per case |
| Cores |
150 |
|
| Cases |
75 |
| Row number |
10 |
| Column number |
16 |
| Core Diameter (mm) |
1 |
| Thickness (µm) |
5 |
| Quality Control |
H&E and IHC conFirmed |
| Tissue Array Type |
FFPE |
| Species |
Human |
| Notes |
1. TMA slides were sectioned and stored at 4°C and may not be fresh cut, but still suitable for IHC. Please request fresh cut if experiment involves phospho-specific antibodies, RNA studies, FISH or ISH, etc. A minimum of 3 slides per TMA must be purchased to cover the cost of trimming for fresh sectioning.
2. Most TMA slides were not coated with an extra layer of paraffin (tissue cores can be easily seen on the glass). To prevent tissue detachment during antigen retrieval, unbaked slides must be baked for at least 30 to 120 minutes at 60°C. before putting into xylene for de-paraffinization. Baked slides were sent out baked for 2 hours.In the following specsheet,“*” means invalid core; “-” means no applicable or negative in IHC markers. |
Mouseover and click individual cores to view high resolution images.
| Legend: | Bre - Breast,
Lef - Left breast,
Rig - Right breast
 - Malignant tumor,
 - Malignant tumor (stage IA),
 - Malignant tumor (stage IB),
 - Malignant tumor (stage IIA),
 - Malignant tumor (stage IIB),
 - Malignant tumor (stage IIIA),
 - Malignant tumor (stage IIIB),
 - Malignant tumor (stage IIIC),
 - Normal tissue
|
Specification Sheet (Sortable), tissue IDs are available in exported Excel files.
Find overlapping cases with this tissue array:
- Product Code: BR1500
- Availability: In Stock
|
Tags:
Stage (TNM),
With normal control (),
Single core per case
