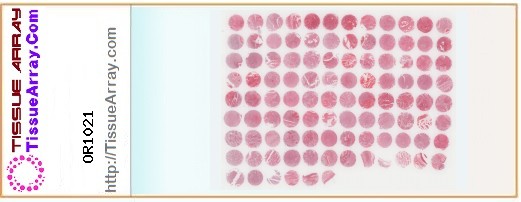

OR1021 : Oral cavity cancer and normal tissue array , including pathology grade and clinical stage (AJCC 8th edition), 98 cases/102 cores (core size 1.5mm).
Description
| Microarray Panel |
Oral cavity cancer (gingiva cancer as the main type) and normal tissue microarray ,containing 25 gum carcinoma, 23 tongue carcinoma ,18 buccal mucosa carcinoma, 20 oropharyngeal carcinoma, 3 floor of mouth carcinoma, one case each of maxillary sinus and salivary gland carcinoma, 7 cases of normal oral cavity tissues, single or duplicate cores per case |
| Cores |
102 |
|
| Cases |
98 |
| Row number |
8 |
| Column number |
13 |
| Core Diameter (mm) |
1.5 |
| Thickness (µm) |
5 |
| Quality Control |
H&E and IHC conFirmed |
| Tissue Array Type |
FFPE |
| Species |
Human |
| Notes |
1. TMA slides were sectioned and stored at 4°C and may not be fresh cut, but still suitable for IHC. Please request fresh cut if experiment involves phospho-specific antibodies, RNA studies, FISH or ISH, etc. A minimum of 3 slides per TMA must be purchased to cover the cost of trimming for fresh sectioning.
2. Most TMA slides were not coated with an extra layer of paraffin (tissue cores can be easily seen on the glass). To prevent tissue detachment during antigen retrieval, unbaked slides must be baked for at least 30 to 120 minutes at 60°C. before putting into xylene for de-paraffinization. Baked slides were sent out baked for 2 hours.In the following specsheet,“*” means invalid core; “-” means no applicable or negative in IHC markers. |
Mouseover and click individual cores to view high resolution images.
| Legend: | Adr - Adrenal gland,
Buc - Buccal mucosa,
Flo - Floor of mouth,
Gin - Gingiva/retromolar area,
Gum - Gum,
Max - Maxillary sinus area,
Oro - Oropharyngeal,
Sal - Salivary gland,
Ton - Tongue
 - Malignant tumor,
 - Malignant tumor (stage I),
 - Malignant tumor (stage II),
 - Malignant tumor (stage IIB),
 - Malignant tumor (stage III),
 - Malignant tumor (stage IV4),
 - Malignant tumor (stage IVA),
 - Malignant tumor (stage IVB),
 - Normal tissue
|
Specification Sheet (Sortable), tissue IDs are available in exported Excel files.
Find overlapping cases with this tissue array:
- Product Code: OR1021
- Availability: In Stock
|
Tags:
Stage (TNM),
With normal control (),
Single core per case
